CSF10 Clamshell Pipe Cutters Bevelers
The CSF Series Clamshell Pipe Cutting & Beveling Machines from EZLINK PORTABLE MACHINE TOOLS are designed to provide stable and precise cuts and bevels for pipes and tubes. With the ability to simultaneously cut and bevel, these machines increase productivity and efficiency.
Our standard range features ten models, covering a wide range of pipe sizes from 50mm to 1230mm (2in to 48in). The lightweight and compact design of the aluminum/steel bodies makes them ideal for applications with limited clearances. Our split frame technology also makes it easy to install and remove the machine from the pipe.
The CSF Series Clamshell Pipe Cutters Bevelers are available with pneumatic, Metabo electric, and hydraulic power options, with the hydraulic version able to cut pipes with a maximum wall-thickness of 40mm. The CSF10 model is capable of cutting and beveling pipes with a diameter range of 114-275mm.
Specification
Product Advantage
Datasheet Download
Videos
Specification
CSF10 Clamshell Pipe Cutters Bevelers
| SPECIFICATIONS | INCH | METRIC | |
| Working range | 4 – 10 in. | 114 – 275 mm | |
| Max Wall-Thickness | Pneumatic & Electric Motor: | 1.18 in. | 30mm |
| Hydraulic Power: | 1.57 in. | 40mm | |
| Power | Pneumatic: | 3.77 HP | 1500L-3000L/Min @0.6/0.7 Mpa |
| Optional Motor: | Metabo Electric Motor | Hydraulic | |

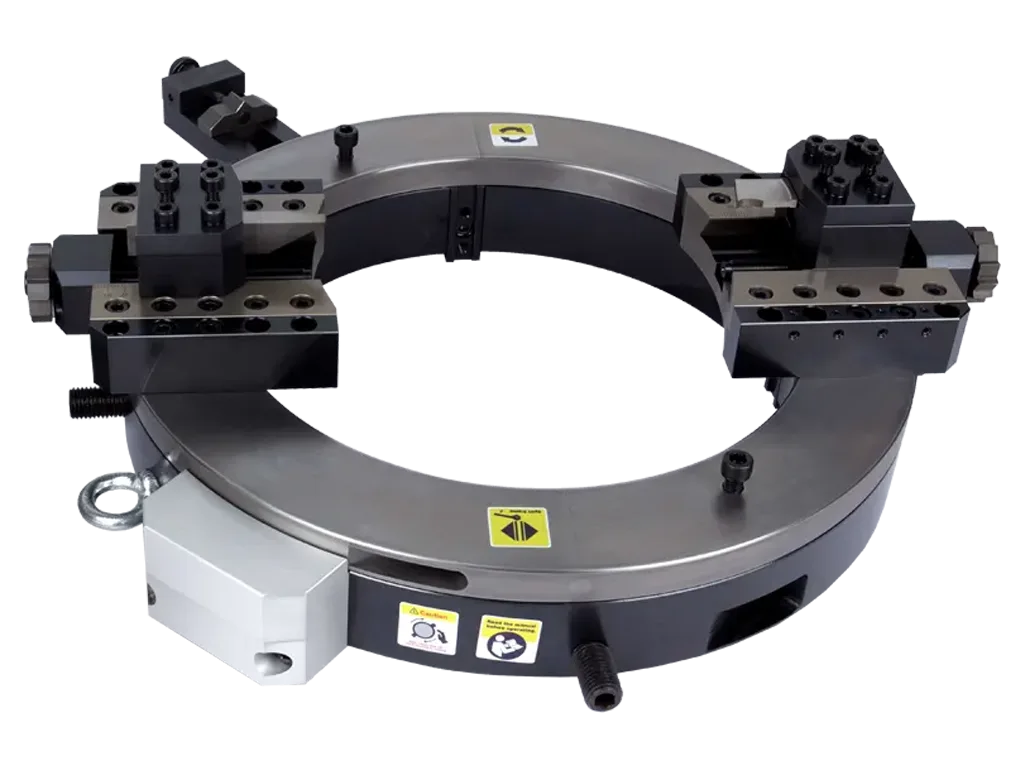

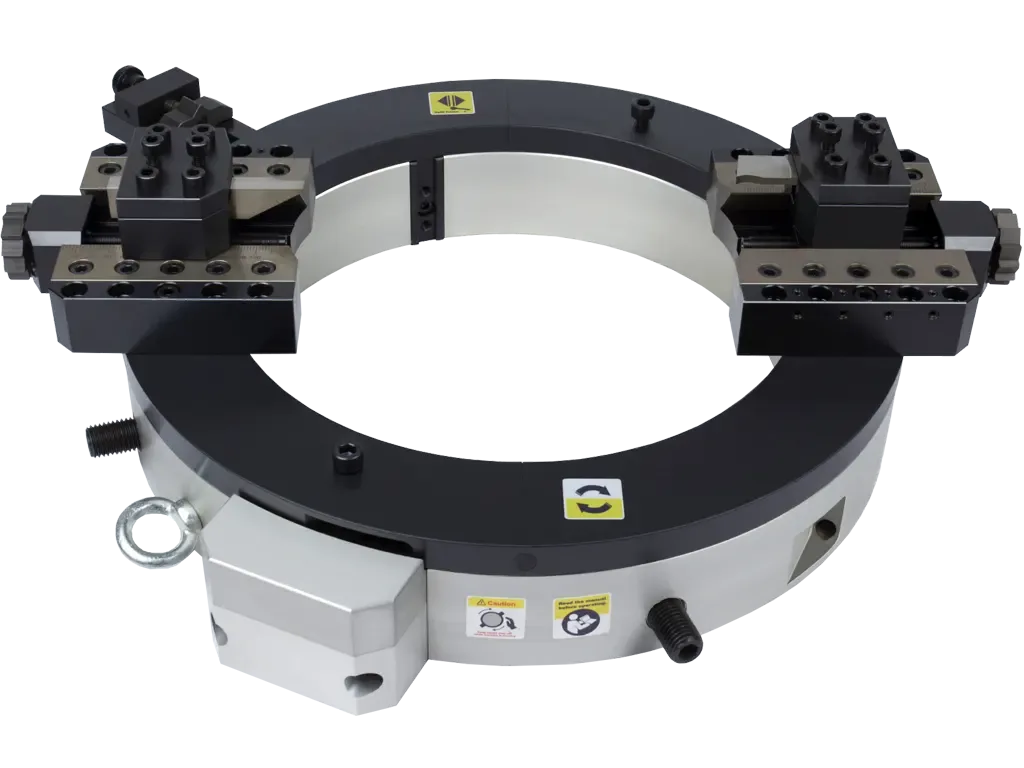

| Machine Body Material | Steel Body | Aluminium Body | |
| d | 11.1 in. | 283mm | |
| D | 24.1 in. | 612mm | |
| L | Steel Body: | 7″(178mm) | |
| Aluminium Body: | 7.6″(192mm) | ||
| Working Weight | Steel Body: | 53.5 kg | |
| Aluminium Body: | 44.5 kg | ||
| Shipping Weight | Steel Body: | 88.5 kg | |
| Aluminium Body: | 79.5 kg | ||
| Packing: | 28.3 x 27 x 12 In. | 710x690x290 mm | |
- Standard box: Plywood case.
- Feel free to contact us if you get any problem for configure the machine.
Product Advantage

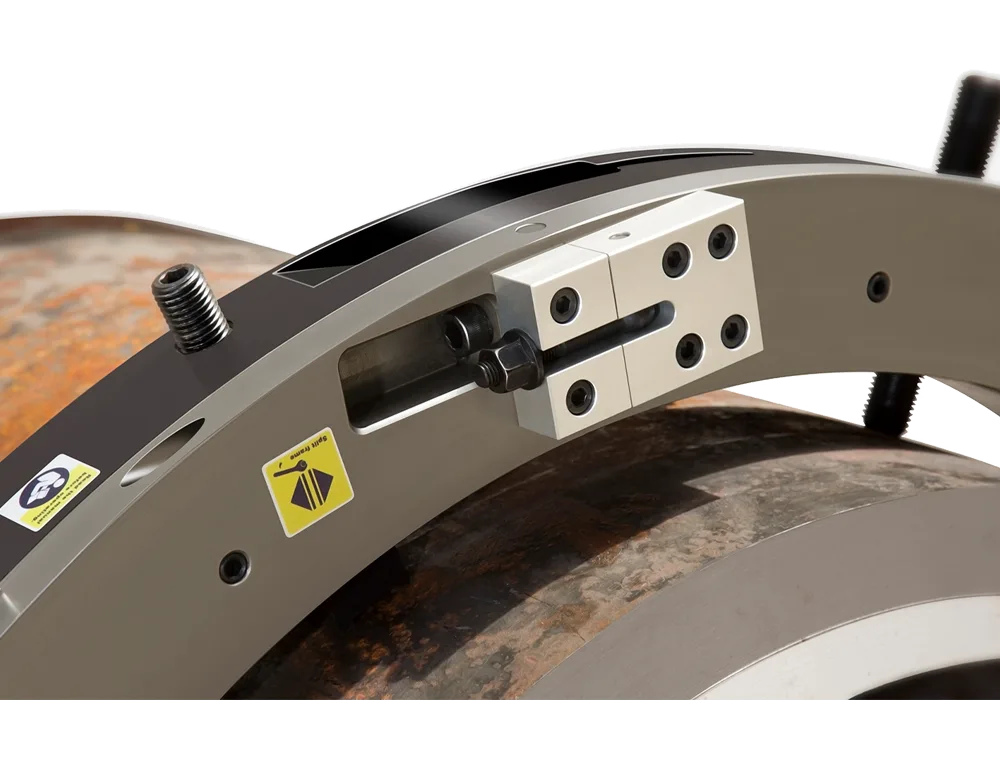

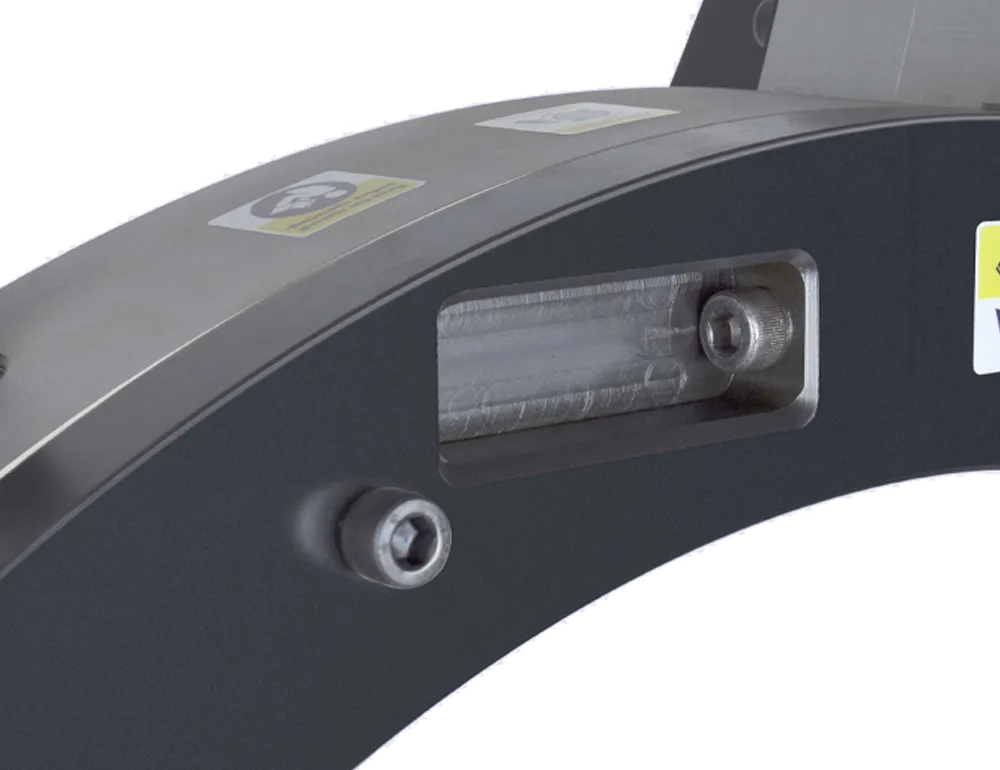

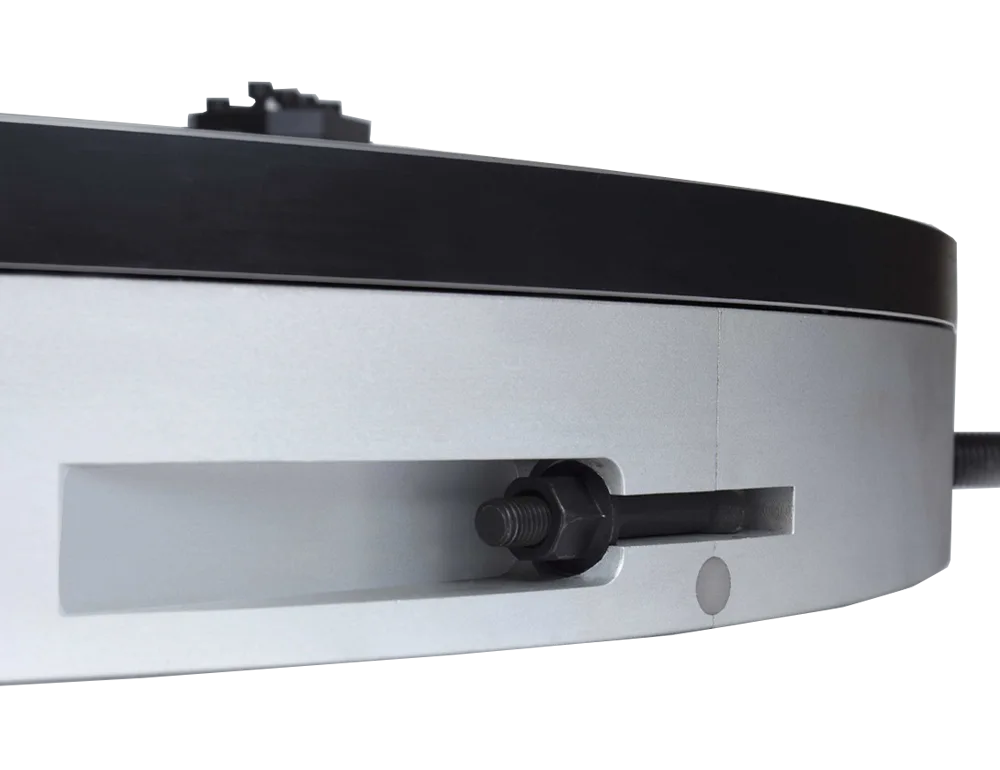

- SPLIT FRAME
- Allows for quick mounting and dismounting on in-line pipe COLD Cutting & BEVELING
- Cutting and beveling with a torch not only requires additional grinding, but may cause an undesirable heat affected zone
- Reduces safety issues associated with traditional severing/ beveling methods
- LOW AXIAL/RADIAL CLEARANCE
- Provides easier access between pipes
- Allows for severing and beveling of short pipe sections
- pneumatic and electric motor optional to meet different

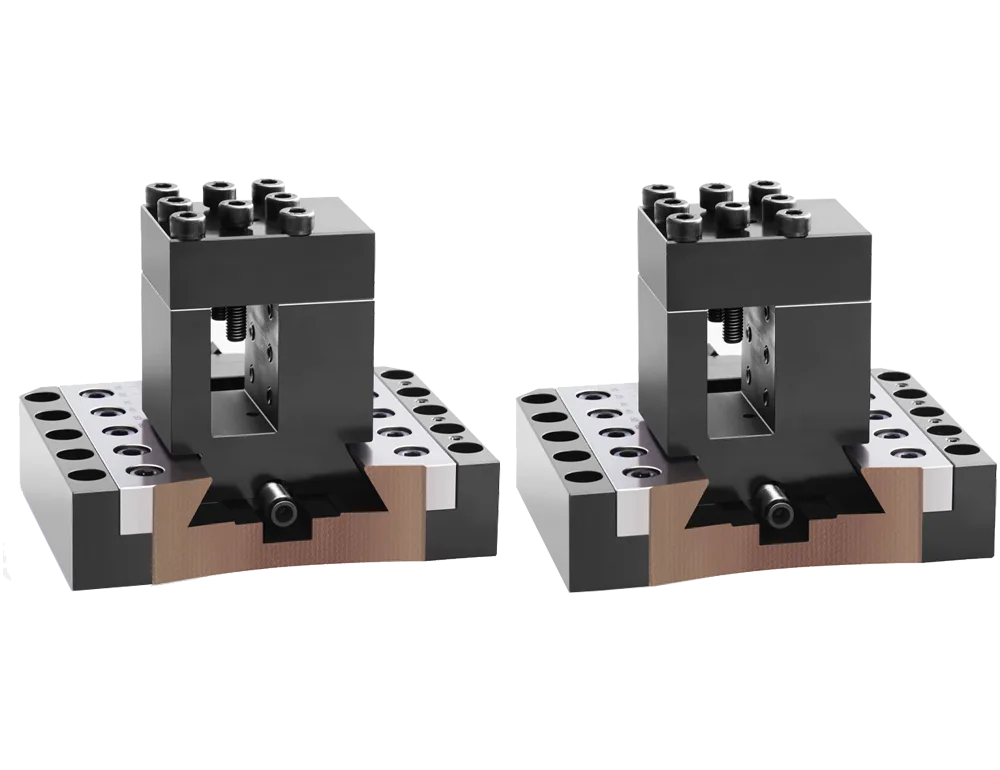

- AUTOMATIC TOOL FEED
- Simplifies operator use, while maintaining precise bevels
- Eliminates need for skilled operator
